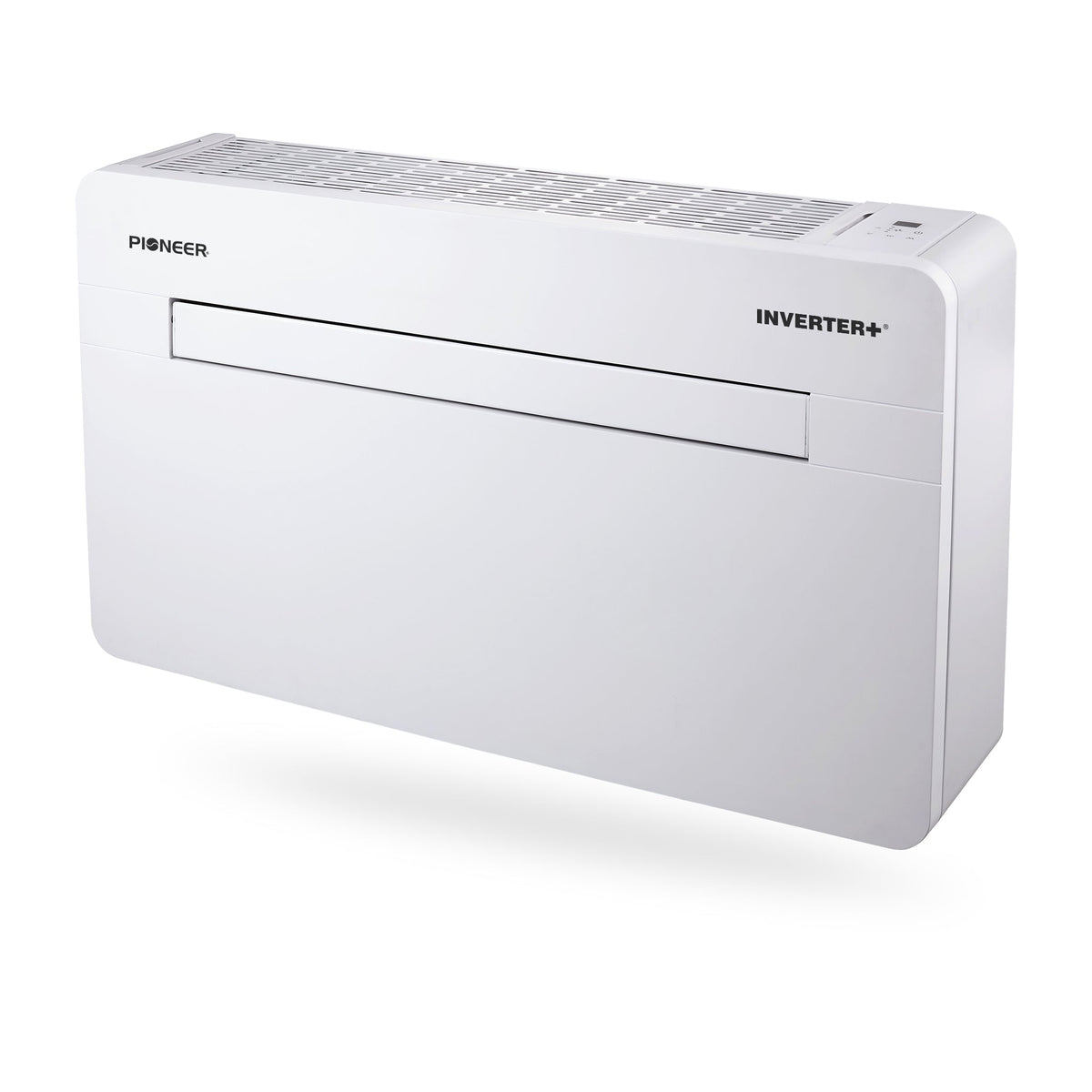

Pioneer 12,000 BTU All-in-One Console Heat Pump — 230V

The Pioneer PYM012GZUI16RD combines room cooling and heating in one through-the-wall console. Its monoblock design has no separate outdoor condenser. Wall openings, drainage and a suitable electrical supply are still required.

Performance and controls

• Rated cooling: 11,800 BTU/h; 15.55 SEER2
• Rated heat-pump heating: 10,900 BTU/h; 8.15 HSPF2
• Supplemental electric heater: 3,000W
• Cooling, heating, dry, auto and fan modes
• Washable filters, adjustable louvers and handheld remote
• Built-in Wi-Fi control through the Pioneer Airlink app

Check your installation

• Power: 208/230V, 60Hz, single phase
• Required dedicated circuit: 20A, double pole
• Heat-pump outdoor heating range: 28–75°F
• Dimensions: 39.5 inches wide × 7.625 inches deep × 22.75 inches high
• Unit weight: 117 lb
• Refrigerant: R-32

Confirm room sizing, wall construction, clearances, drainage and electrical requirements with a qualified installer before ordering. This unit is not designed for a standard 120V outlet. Use the manufacturer's installation manual for complete requirements.

Included equipment

Includes the console, mounting bracket, remote, drainage components, exterior grilles, duct inserts, installation hardware and instructions. Installation labor and a separate wall thermostat are not included.
